Low-cost Adapter Sigma-22

Specifications
Documentation
Software

Features:

Two full duplex serial ports
Up to 384 kbps
V.35/RS-232 or RS-530(RS-449)
Independent synchronous/asynchronous mode selection per port
Full modem control
Two independent baud rate generators per port for transmit and receive
DMA bus master
Certificate N OS/1-SPD-695 of Russian Ministry of Communications

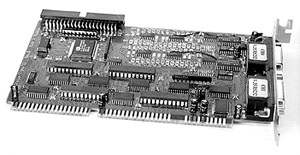

The Sigma-22 is a middle speed (up to 384 kbps) synchronous/asynchronous adapter intended for use with IBM PC and compatible computers.

Sigma-22 adapter is based on the CL-CD2431 controller chip (a product of Cirrus Logic Corp., USA). It supports master mode DMA data transfer providing the most efficient use of the PC input/output bus. Interface options cover RS-232, V.35, RS-530 and RS-449 standards. The adapter is software-configurable. Only I/O Base Address is jumper selectable.

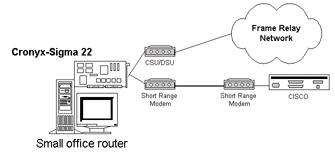

The Cronyx-Sigma software allows to join several physical synchronous communication channels into one logical channel. For example, two channels with data rate 128 kbps, joined together, will create the logical channel with the overall throughput of 256 kbps.

There are several models of Sigma adapter available, supporting different serial interfaces.

Currently available models are listed in Prices. Please, contact technical support if you are unsure which model to choose.

Specifications

Feature	Sigma-22	Sigma-22/VR	Sigma-22/R
PC Bus Interface:
Bus Type	ISA, 16 bit
I/O Base Address	240h, 260h, 280h, 300h, 320h, 380h, 3A0h, Jumper Selectable
I/O Address Space	32 Bytes
Interrupts	IRQ 3, 5, 7, 10, 11, 12, 15, Software Selectable
DMA Channels	DMA 5, 6, 7, Software Selectable
DMA Transfers	Master Mode, Word Bursts
Addressable Memory	16 Mbytes
Serial Interfaces:
Interface Type	RS-232/V.35	Channel 0: RS-232/V.35, Channel 1: RS-530 (RS-449)	RS-530 (RS-449)
Data Transfer Rate per direction for each channel simultaneous operation	192 kbps
Maximum Single Channel Data Transfer Rate	384 kbps
Bit Rate Generator	Independent per channel per direction
Synchronous Protocol	HDLC
Asynchronous Transfer	5-8 Bits/Character, 1/1.5/2 Stop Bits
Sync Mode Error Detection	Cyclic Redundancy Check CRC-16, CRC V.41
Async Mode Error Detection	Parity Bit
Clock Options	TXCIN, RXCIN, TXCOUT or DPLL, Software selectable per channel
Modem Control Signals Supported	DTR, DSR, CTS, RTS, CD
Board Size	Height: 105 mm, Width: 165 mm
Operating Systems and Protocols
Windows NT/2000	PPP
FreeBSD 4.x, 5.x, 6.x (FreeBSD 7.x is not supported)	PPP, Cisco/HDLC, Frame Relay
Linux	PPP, Cisco/HDLC, Frame Relay
