19'' Rack 3U11

Specifications
Documentation

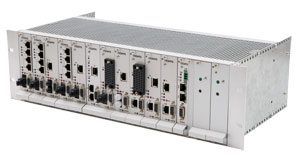

19'' 3U11 Cronyx Rack Features:
  • Up to 11 units execution /K per rack
  • Redundant power supply
  • AC or DC power
  • Can be equipped with SNMP monitoring and control board RMC2 with Ethernet and RS-232 ports

The Rack 3U11 is intended for simultaneous installation up to 11 devices CRONYX of execution /K (one-sided modules 3U6T). The rack is equipped by separate slot for installation of a module of monitoring and management RMC2/K. The insert/removal of modules without switching-off of a power is supposed. In a rack it is established one or two same power units (are bought separately). Power units have the separate isolated inputs of a power and are incorporated on an output in a mode of division of loading.

Order codes:

Currently available models are listed in Prices. Please, contact technical support if you are unsure which model to choose.

Specifications

Parameters
Box Rack mount 19" 3U
Quantity of slots for devices of execution /K 11
Separate slot for the module of monitoring RMC2/K 1
Quantity of slots for power units 2
Dimensions 480 mm x 240 mm x 132 mm
Weight of empty rack with 2 power units no more than 5 kg
Power requirements
AC power source (-AC) 187-254V, 50Hz
DC power source (-DC) 36-72 V
Average power consumption of one power unit no more than 127 VA
Control (optional RMC2/K board)
Console ASCII Terminal (VT-100 or compatible)
Remote management SNMP, Web-interface, Telnet
Control ports RS-232, Ethernet 10Base-T
Environment
Temperature 0oC - 50oC
Humidity up to 80%

Documentation

Some of the documents are in Adobe® Acrobat® Reader® format

PDF  19'' Rack 3U11. User's Manual in Russian
