Asynchronous Adapter Omega2-PCI

Specifications
Documentation
Software

Features:

Fast memory-mapped I/O;
8 full duplex ports;
Up to 921.6 kbps;
Asynchronous mode;
RS-232;
Full modem control;
Extended FIFO depth of 64 bytes;
PCI 2.1 bus, 33 MHz, 32 bit, universal 5V/3.3V;
Hardware compatibility with 16С550;
Certificate N OS/1-SPD-695 of Russian Ministry of Communications;

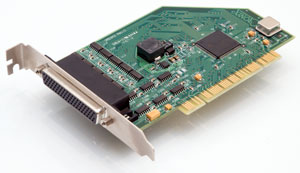

The Omega2-PCI is an 8-port asynchronous multiport adapter for computers with PCI bus. Omega2-PCI registers are memory not i/o based.

The adapter is based on the controller with 64 bytes of transmit and receive FIFO. Extended FIFO depth reduces interrupt processing overhead and increases data throughput.

The adapter don't use -5V and -12V from power supply. Support PCI bus, 33 MHz, 32 bit, 3.3V or 5V.

Currently available models are listed in Prices. Please, contact technical support if you are unsure which model to choose.

Specifications

PC Bus Interface
Bus Type	PCI 2.1, 33 MHz, 32 bit, 3.3V or 5V
Serial Interfaces
Number of Channels	8
Interface Type	RS-232
Maximum Single Channel Data Transfer Rate	921.6 kbps
Baud Rate Generator	Independent per channel
Asynchronous Transfer	5-8 Bits/Character, 1-2 Stop Bits
Error Detection	Parity bit
Modem Control Signals	DTR, DSR, CTS, RTS, CD, RI
Board Size	Height: 88.3 mm, Width: 140.7 mm
Operating Systems	Windows 2000/XP/2003 x86 (32-bit), Linux, FreeBSD
