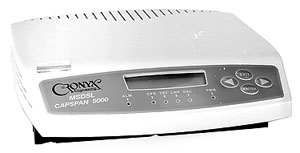

Modem CAPSPAN5000
Discontinued, recommended replacement is: QLink-3000
Specifications
Data rates
Documentation
|
Features:
|
The CAPSPAN5000 MSDSL access system provides high-speed data access over single-pair copper wires. It can transmit up to 2.048 Mbps E1 signal without a repeater for more than 7 Km at a Bit Error Rate of less than 10-7.
Using MSDSL transmission technology, the CAPSPAN5000 MSDSL network access system allows fiber quality transmission on single pair of copper wire. Using lower guage larger copper wire may allow you to attain greater distances.
It can be configured via LCD panel or via RS-232 port at baud rate of 9600, 8 bits/char, no parity, 1 stop bit.
Currently available models are listed in Prices. Please, contact technical support if you are unsure which model to choose. Все модели в исполнении для монтажа в шасси 19" 6U сняты с производства осенью 2006 года.
| MSDSL Loop Interface | |
|---|---|
| Number of Wires | Two wires |
| Line Code | CAP |
| Line Rate (payload) | 128 kbps - 2048 kbps |
| Line Impedance | 135 ohms |
| Frequency bandwidth | 4K - 400K Hz |
| Transmit Power | 7.4 - 13 dBm |
| Loop Length | 3.4km - 6.8km(0.4mm) |
| Connection | RJ-45 |
| E1 Interface | |
| Line Interface | ITU-T G.703 |
| Line Code | HDB3 |
| Frame Format | Framed or Unframed |
| Line Rate | 2.048 ± 50PPM |
| Fraction | Nx64k,1<=N<=32 |
| Line Impedance | 120 or 75 ohms |
| Connection | RJ-45 or BNC |
| High Speed Data Interface | |
| Data Rate | Nx64K,1<=N<=32 |
| Interface | V.35,RS-530,RS-449 |
| Ethernet Interface | |
| Connector Type | UTP LAN (10BaseT), RJ-45 (female) |
| Data rate | 64 - 2048 kbit/sec |
| Duplex mode | Half duplex |
| Protocol | Remote Bridge |
| Filtering rate | 15000 packets/sec |
| Address table size | 10000 MAC addresses |
| Power Requirements (standalone) | |
| Input voltage | 42-56 VDC or 90-260 VAC |
| Power consumption | 8 W max |
| System Management | |
| Console | ASCII Terminal (VT-100 or compatible) |
| Embedded Control | LCD panel |
| Environment | |
| Temperature | 0oC - 60oC |
| Humidity | 5% - 95% |
| Line Rate (kbps) | 144 | 272 | 400 | 528 | 784 | 1040 | 1552 | 2064 |
| Payload Rate(kbps) | 128 | 256 | 384 | 512 | 768 | 1024 | 1536 | 2048 |
| Reach 24 AWG(km) | 8.7 | 8.3 | 7.8 | 7.4 | 6.1 | 5.8 | 5.0 | 4.4 |
| Symbol Rate(kbauds) | 72 | 90.6 | 133 | 176 | 261 | 260 | 310 | 344 |
| Information Rate (Bits/baud) | 2 | 3 | 3 | 3 | 3 | 4 | 5 | 6 |
| Constellation | 8-CAP | 16-CAP | 16-CAP | 16-CAP | 16-CAP | 32-CAP | 64-CAP | 128-CAP |
| Tx Power(dBm) | 7.4 | 8.3 | 9.7 | 11.7 | 12.9 | 12.9 | 13.0 | 13.0 |
| Bandwidth(kHz) | 4-86.8 | 4-108.3 | 4-157 | 4-206.4 | 4-304.2 | 4-305 | 4-306.5 | 4-399.6 |
| Line Impedance (ohm) | 135 | 135 | 135 | 135 | 135 | 135 | 135 | 135 |
